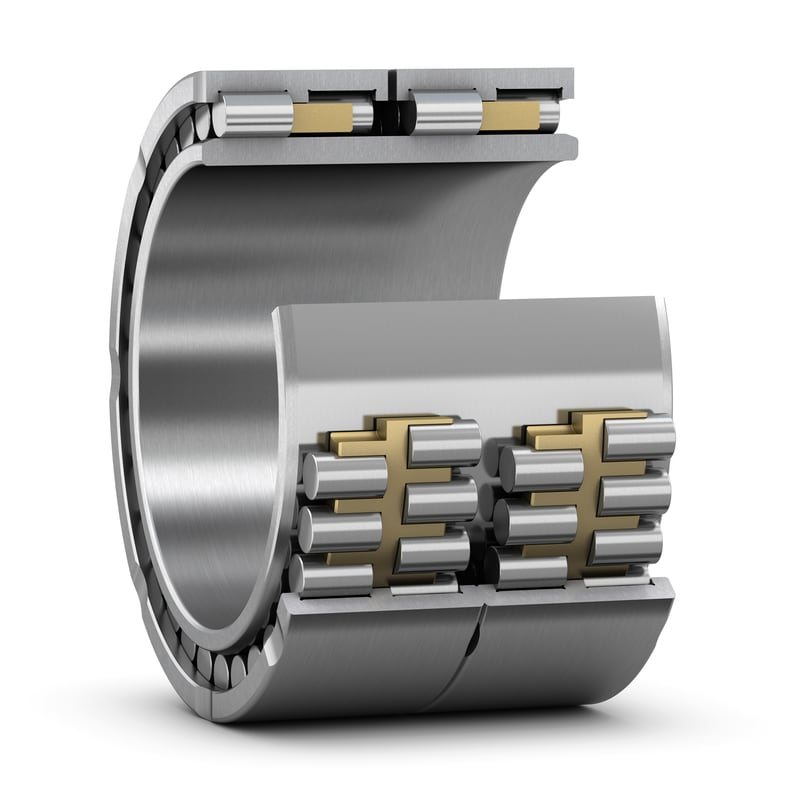

SKF BC4-0114 Cylindrical roller bearings four-row
Brand:SKF
Original:GERMANY
Type:Cylindrical-roller-bearings-four-row
Item:SKF BC4-0114
Inner:180MM
Outner:2600MM
Thickness:168MM
Weight:58.6KG
Description
SKF BC4-0114 specification parameter：
| d |
180 mm
|
Bore diameter |
|---|---|---|
| D |
260 mm
|
Outside diameter |
| B |
168 mm
|
Total bearing width over inner ring(s) |
| C |
168 mm
|
Total bearing width over outer ring(s) |
| D1 |
≈ 232.8 mm
|
Outer ring shoulder diameter |
| F |
202 mm
|
Raceway diameter inner ring |
| r1,2 |
min. 2.1 mm
|
Corner radius/chamfer inner ring |
| r3,4 |
min. 2.1 mm
|
Chamfer dimension on the outer ring |
| s |
3 mm
|
Permissible axial displacement from the normal position of one bearing ring relative to the other |
CALCULATION DATA
| C |
1 560 kN
|
Basic dynamic load rating |
|---|---|---|
| C0 |
2 500 kN
|
Basic static load rating |
| Pu |
265 kN
|
Fatigue load limit |
MASS
|
30.1 kg
|
Mass bearing |
INCLUDED PRODUCTS
|
RBC4-0114
|
Bearing ring with roller and cage assembly |
|
LBC4-0114
|
Separable bearing ring |
313893 313823 313877
As a professional bearing exporter and SKF distributor, WS Bearing stocks thousands kindsof Cylindrical roller bearings four-row for sale，We can export to Singapore–Viet Nam–Malaysia–Indonesia–America etc. Because there are many types of SKF products, we can not upload all of them at present. If you have problems about selecting proper bearings for your special applications, please contact us right now
