Single direction angular contact thrust ball bearings

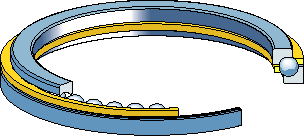

Single direction angular contact thrust ball bearings (fig. 1) are designed to accommodate axial loads in one direction only and therefore are adjusted against a second bearing or mounted as sets. In their main application area of rotary tables, two bearings are always used and adjusted against each other.
Double direction angular contact thrust ball bearings
Double direction angular contact thrust ball bearings consist of one housing washer, two shaft washers and two different-size ball and cage assemblies (fig. 2). The larger bearing half has a higher load carrying capacity. Double direction angular contact thrust ball bearings have a low height and can accommodate axial loads in both directions as well as moment loads. A single bearing can therefore be used to support rotating machine components relative to stationary components.
Cages
SKF angular contact thrust ball bearings, if not full complement of balls, are fitted with a window-type machined brass cage (fig. 3), either shaft or housing washer centred.
Double direction bearings are equipped with two different-size cages.
For information about the suitability of cages, refer to Cages.
