FAG NU2212-E-XL-TVP2 Cylindrical roller bearings
main dimensions to DIN 5412-1, non-locating bearing, separable, with cage
Description
Schaeffler Group Industrial brings together the industrial activities of INA and FAG. Together, the two companies have the widest product portfolio in the rolling bearing industry. With more than 40 000 products manufactured as standard, applications across some 60 industrial sectors can be covered.

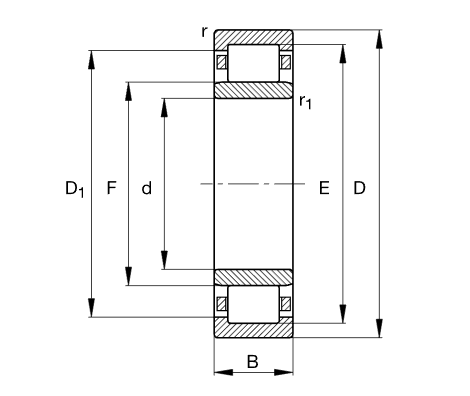

The techinical sheet for FAG NU2212-E-XL-TVP2:
| d | 60 mm | |
| D | 110 mm | |
| B | 28 mm |
| D1 | 96,1 mm | |
| Da max | 101 mm | |
| da max | 71 mm | |
| da min | 69 mm | |
| db min | 75 mm | |
| E | 100 mm | |
| F | 72 mm | |
| r1 min | 1,5 mm | |
| ra max | 1,5 mm | |
| ra1 max | 1,5 mm | |
| rmin | 1,5 mm | |
| s | 1,6 mm | Axial displacement facility from central position |
| m | 1,08 kg | Mass |
| Cr | 152000 N | Basic dynamic load rating, radial |
| C0r | 153000 N | Basic static load rating, radial |
| Cur | 28000 N | Fatigue limit load, radial |
| nG | 7700 1/min | Limiting speed |
| nϑr | 4300 1/min | Reference speed |
FAG Bearings have been synonymous with high quality for over 120 years. In 1883, Friedrich Fischer designed a ball grinding machine in Schweinfurt, Germany that, for the first time, made it possible to produce absolutely round steel balls by grinding. The invention is regarded as the foundation for the entire rolling bearing industry. There is many types of bearings, there are only a part on our website, if you need more information, pls contact us.
