FAG HCB7013-E-2RSD-T-P4S Super Precision Angular contact ball bearing
Brand: FAGOriginal:GERMANY
Type: Angular contact Ball bearing
Item: FAG HCB7013-E-2RSD-T-P4S
Inner: 65mm
Outner: 100mm
Thickness:18mm
Weight: 0.372kg
Description
Schaeffler Group Industrial brings together the industrial activities of INA and FAG. Together, the two companies have the widest product portfolio in the rolling bearing industry. With more than 40 000 products manufactured as standard, applications across some 60 industrial sectors can be covered.
adjusted, in pairs or sets, contact angle α = 15°, with ceramic balls, lip seals on both sides, non-contact, restricted tolerances

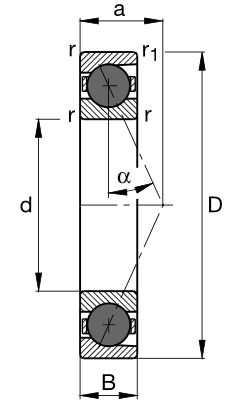

The technical sheet of HCB7013-E-2RSD-T-P4S
| d | 65 mm | |
| D | 100 mm | |
| B | 18 mm |
| a | 28,2 mm | |
| Da | 93 mm | Tolerance: H12 |
| da | 72 mm | Tolerance: h12 |
| r1 min | 1,1 mm | |
| ra max | 1 mm | |
| ra1 max | 0,6 mm | |
| rmin | 1,1 mm | |
| α | 25 ° | Trykvinkel |
| m | 0,357 kg | ≈ vægt |
| Cr | 39500 N | Dynamisk bæretal, radialt |
| C0r | 23100 N | Statisk bæretal, radialt |
| Cur | 1860 N | Udmattelseslast, radial |
| nG Fett | 17000 1/min | Grænseomdrejningstal for fedtsmøring
Grænseomdrejningstallene refererer til elastisk forspændte enkeltlejer. |
| FV L | 137 N | Forspændingskraft |
| FV M | 577 N | Forspændingskraft |
| FV H | 1276 N | Forspændingskraft |
| KaE L | 392 N | |
| KaE M | 1694 N | |
| KaE H | 3836 N | |
| ca L | 131 N/µm | Aksial stivhed |
| ca M | 219 N/µm | Aksial stivhed |
| ca H | 297 N/µm | Aksial stivhed |
